RPH VAULT® provides a consolidated, secure, and configurable pathway for multiple components that penetrate the building envelope.
There are three convenient VAULT® options available:
- Standard VAULT® Solutions
- Pre-Engineered VAULT® Solutions
- Custom VAULT® Solutions
Products
VAULT® Products
The VAULT® offers exceptional protection for your roof and wall penetrations, while meeting mandatory code requirements for air permeance/air leakage and solar reflectance. Our advanced engineering solutions and compliance with industry standards make the VAULT® the preferred choice for architects, engineers, and building owners wanting to ensure maximum protection and durability for their roof and wall penetrations.

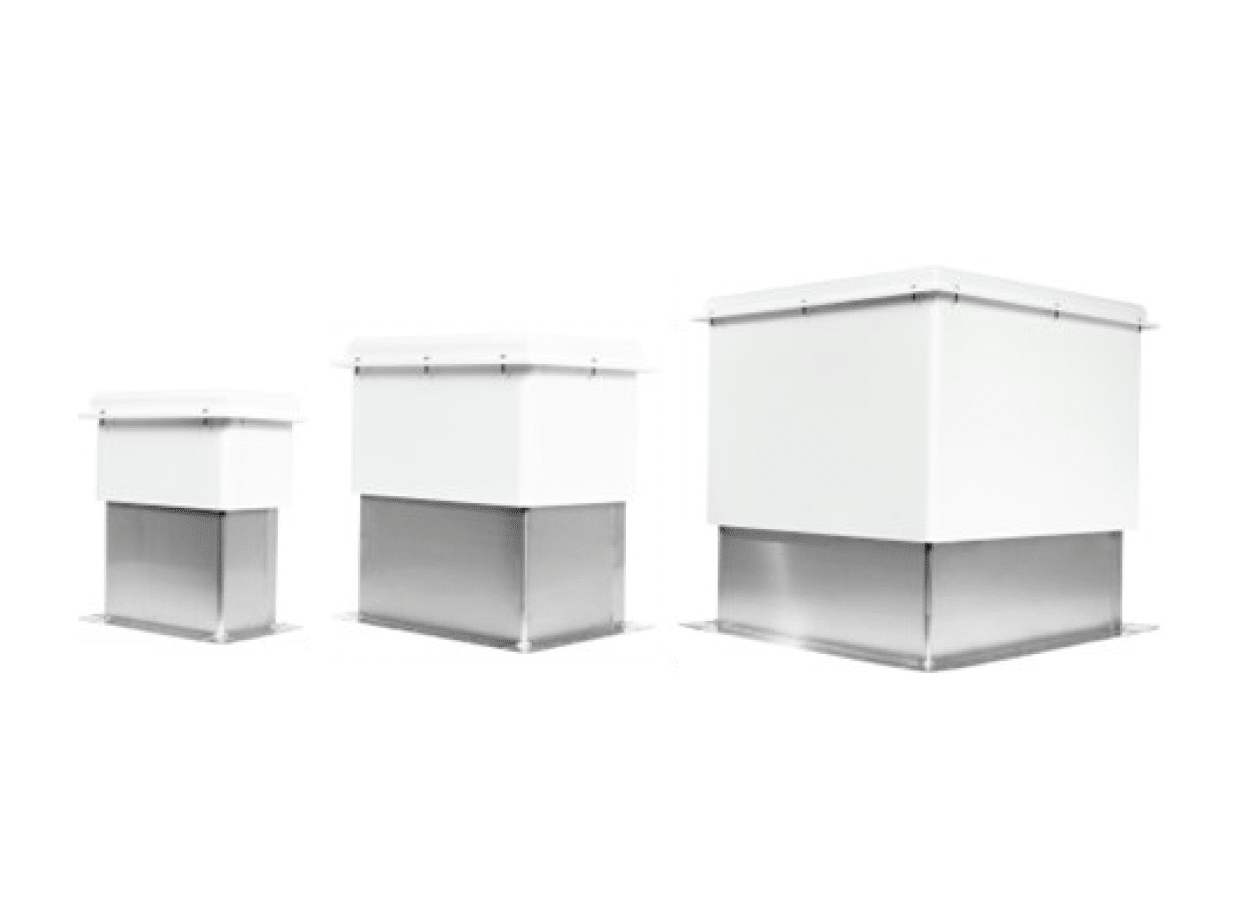

AW VAULT®
The AW VAULT® provides a secure, multi-penetrant pathway to the roof that's insured and warrantied for 20 years. This three-piece assembly features a heavy gauge, all-aluminum, powder-coated construction. It includes a vandal-resistant lid, middle housing, and flanged curb that work together with our RPH Exit Seals for a weather-tight fit around pipes, cables, ductwork, and other penetrants of various sizes.

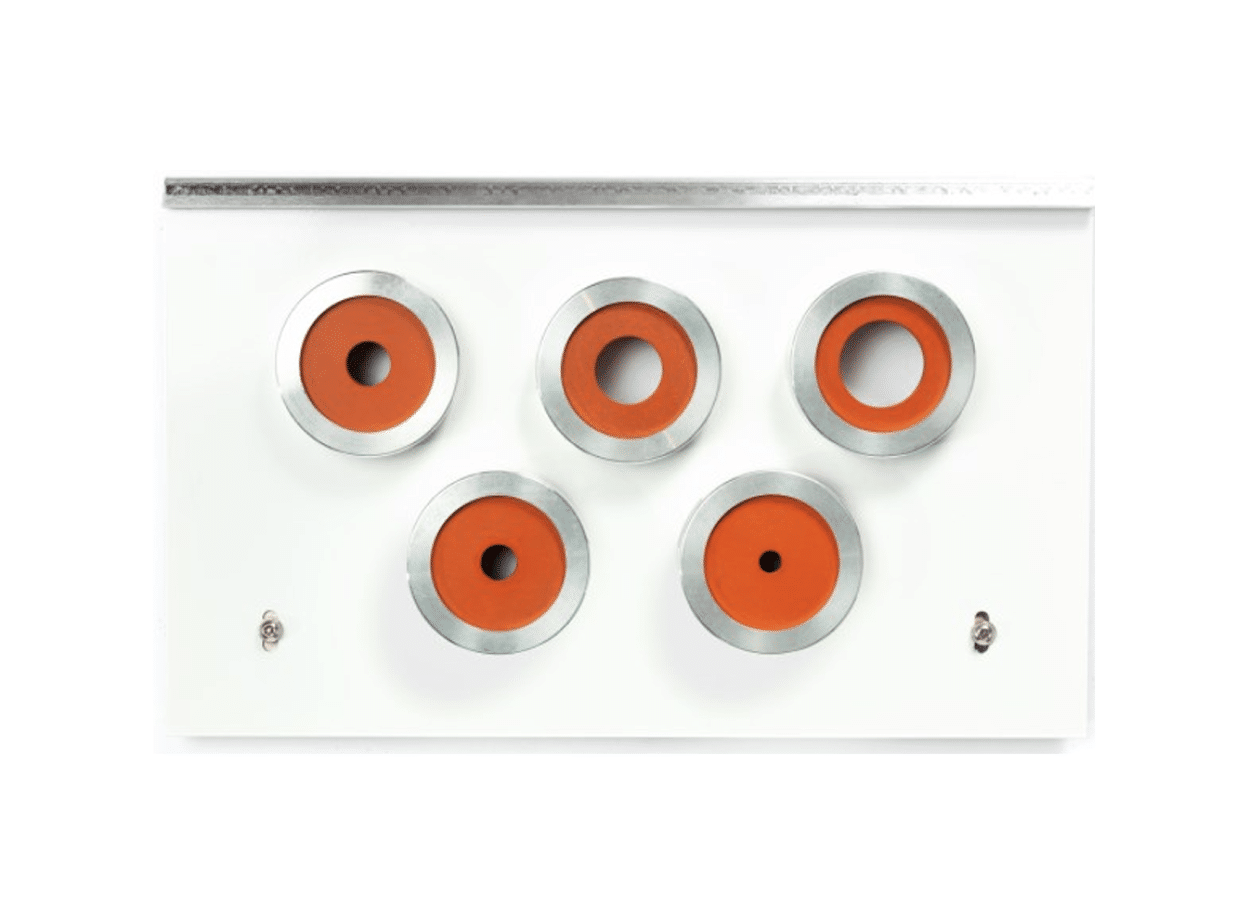

Wall VAULT®
The WALL VAULT® provides a single pathway for multiple penetrations through a parapet or exterior wall. It is constructed using heavy-gauge powder-coated welded aluminum and stainless steel hardware, and is paired with our weather-tight exit seals. Alt-hough the WALL VAULT® is built with the same high-quality mate-rials as our AW VAULT®, it has not been third-party tested as a standalone product.

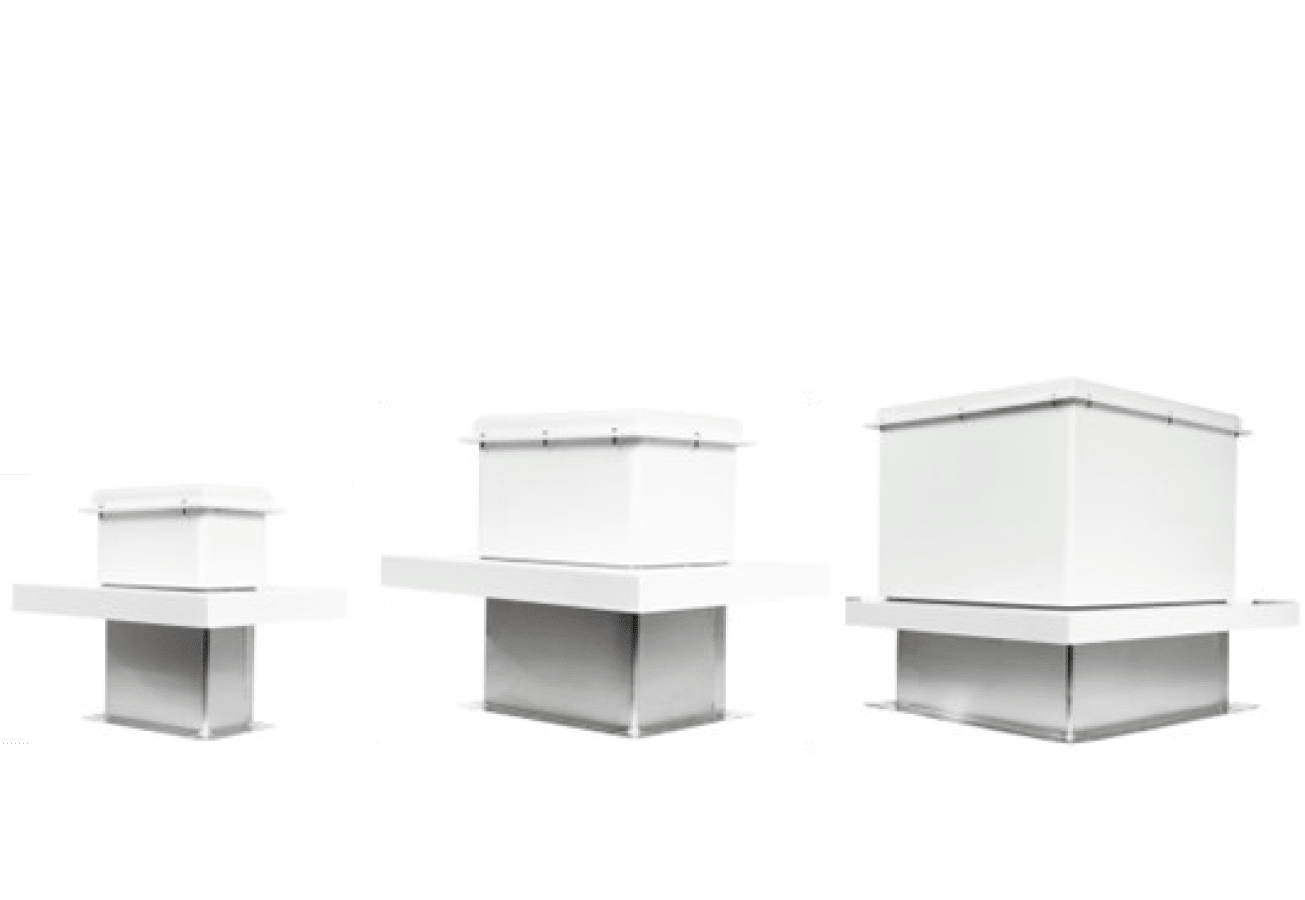

AWI VAULT®
The AWI VAULT® is an AW VAULT® that includes an insulation curb extension (ICE). In addition to the specifications listed in the AW VAULT®, the AWI VAULT® allows for insulation to be installed on-site to further enhance thermal performance along the curb. This VAULT series comes with an air/wind-rated assembly.
VAULT® Products
FEATURES AND BENEFITS
- Meets mandatory wind and air permeance codes
- Third party tested
- 20-year insured warranty
- Multi-penetrant pathway through the roof
- Custom designs available per project specifications
- Configured with a vandal-resistant lid, middle housing, and flanged curb designed to be used with our exclusive RPH Exit Seals™.

VAULT® Products
SIZING

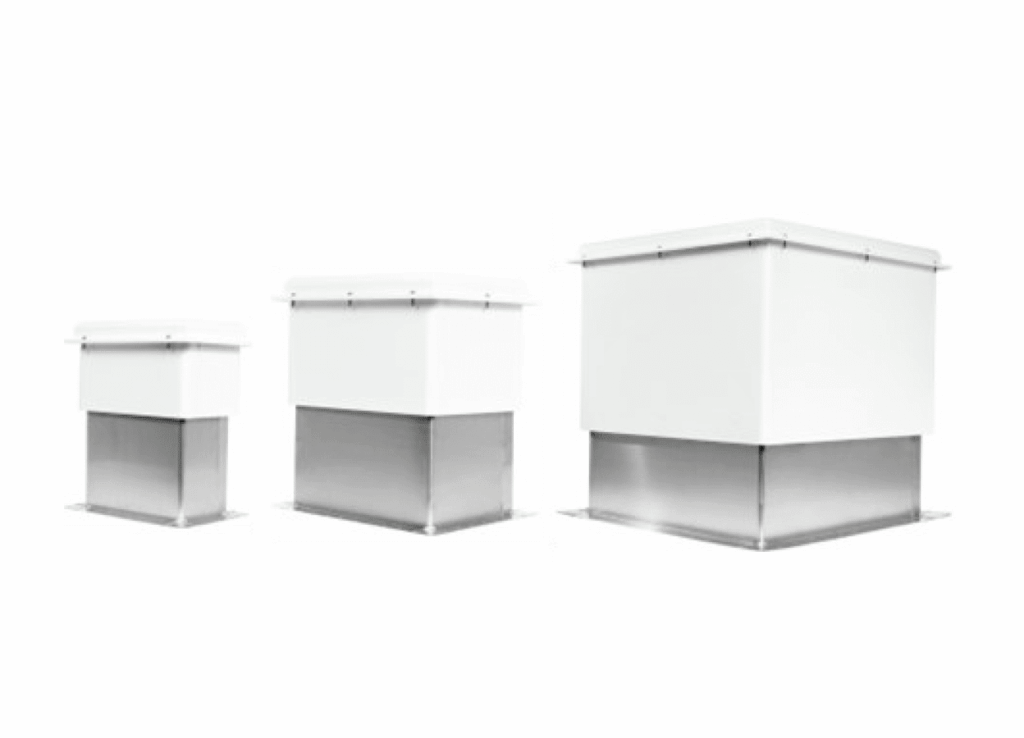

- Standard VAULT® - Three of our most popular VAULT solutions - Small, Medium, and Mega. The Standard VAULT is stocked and ready for immediate shipment, and is the fastest solution for common applications.
- Pre-Engineered VAULT® - Developed from our most requested custom solutions, these 28 built-to-order options reduce lead times and eliminate engineering fees, offering more size choices without full customization.
- Custom VAULT® - Our custom solutions offer the flexibility to overcome your project-specific challenges. Engineered to accommodate any size and type of penetration, in any quantity, they ensure optimal protection while perfectly adhering to you client's project requirements. There is no project challenge we have not been able to solve.

MARKETS SERVED
Where are VAULT® Products Typically Installed?
Typical Building types

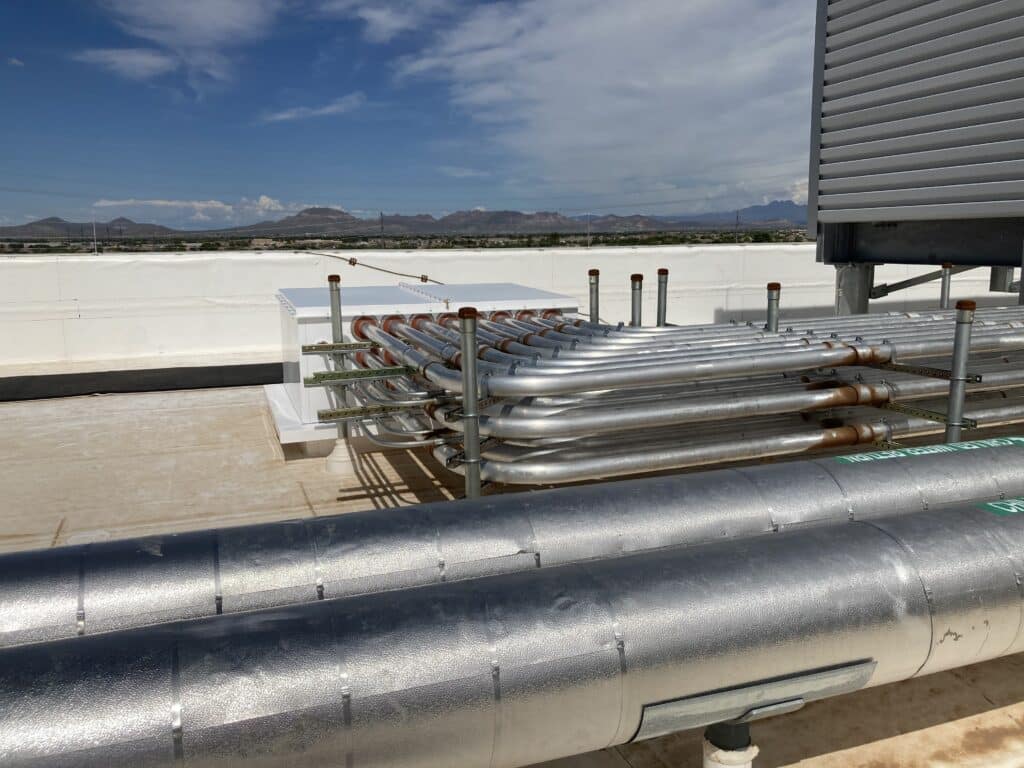

- Data Centers
- Educational Facilities
- Healthcare Facilities
Typical installations
- New Construction
- Retrofit
- Reroof
- Mission Critical Facilities
- Public Safety Facilities
- Food & Beverage Facilities
- Food & Beverage Facilities
- Commercial
- Retail Centers/Strip Malls
- Commercial
- Retail Centers/Strip Malls
- ...and much more

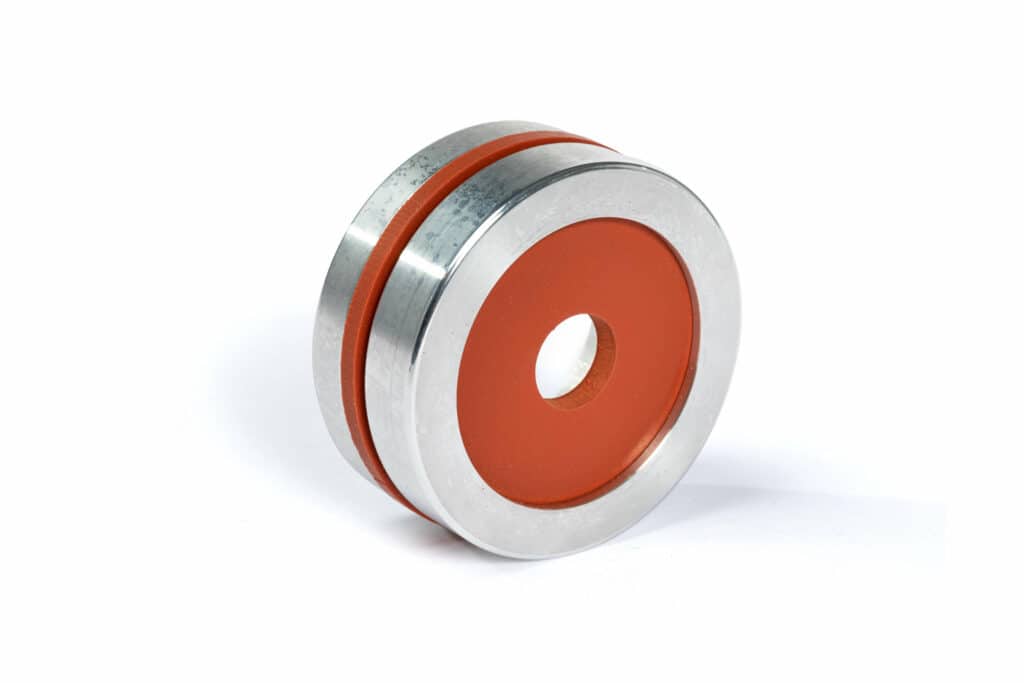

RPH Exit Seals™
Why Do VAULT® Products Perform So Well?
The VAULT® products are meticulously engineered with innovative design and superior quality materials to exceed performance and durability requirements. Our commitment to compliance with industry standards guarantees that our VAULT® products meet the highest performance and quality requirements. Our exit seals are a key component in the performance of our VAULT® products, seamlessly working together to create an integrated solution for protecting roof penetrations.

RPH Exit Seals™
Which VAULT Solution Is Right for Me?
Let us help you find the right solution for your needs!
BENEFITS
Roof Penetration Protection
For details about protecting your roof and wall penetrations, download the VAULT® Sell Sheet.
Our VAULT® products are the perfect solution for architects and engineers looking to ensure building performance, safety, and longevity. They are built to withstand the toughest weather conditions, protect the integrity of the roof and walls, and improve energy efficiency.
The VAULT® eliminates the primary cause of leaks: multiple penetrations. We provide a single, secure pathway through the roof and walls for multiple pipes, conduit, ductwork, fiber optics, and more.
We are the leading, third party tested roof and wall penetration protection solution. We meet FEMA P-361 and ICC 500-2014 for up to 225mph hurricane winds and 2015/2018 IECC C402.5 and ASTM E2178-13 for air permeance/air leakage. We also meet Solar Reflectance Index (SRI) of 88.2.
Once the VAULT® is installed, you have a secure pathway through the roof for future projects. You can add components without creating new penetrations (or voiding your roof warranty).
We constantly talk to architects, engineers, and contractors about their most pressing penetration issues, and then transform them into the most advanced, innovative, highly technical solutions.
We design for ALL sizes and configurations. We stand by our products with a 20-year insured warranty and provide support from design concept through installation.
OUR SUCCESS STORIES
Building Solutions for Various Industries
See how RPH has helped customers achieve their goals by providing tailored building solutions that meet their unique needs. Browse our success stories to see how our products have provided protection for buildings across various industries.
Product Resources
The VAULT® offers exceptional protection for your roof and wall penetrations, while meeting mandatory code requirements for air permeance/air leakage and solar reflectance. Our advanced engineering solutions and compliance with industry standards make the VAULT® the preferred choice for architects, engineers, and building owners wanting to ensure maximum protection and durability for their roof and wall penetrations.
FAQs
The VAULT® is tested and surpasses requirements set forth by ASTM E1886 and E1996, as well as FEMA P-320/361 and ICC-500 (up to 225 MPH). This makes it an excellent choice for projects located in areas that experience high wind events, such as hurricanes.
The VAULT® was created to change the paradigm in roof penetrations by providing a single, secure pathway for multiple penetrations through the roof which eliminates leaks and meets the building code requirements for air permeance and missile impact (e.g., ICC, Miami-Dade/Florida).
The VAULT® was created as a superior alternate solution to pitch pans. As seen time and again in the industry, the pitch pans will fail because the sealant can dry out and shrink, causing leaks. Putting a rubber boot or diverter on it doesn’t solve the problem in the long term, and can even create additional issues. The VAULT®, however, provides a single pathway for multiple penetrations and will replace vertical penetrations with a tightly sealed horizontal penetration.
All penetrations should be supported no more than 12” from exiting the housing, and also, below the roof level as near as possible to the bottom of the roof opening. FAILURE TO DO SO WILL VOID THE WARRANTY.

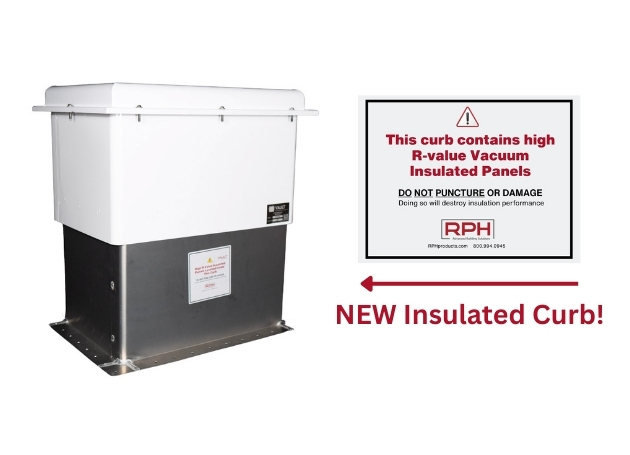

We add R4 insulation to provide a minimal level of protection; however a vapor barrier and additional insulation must be added to meet local requirements.
The housing has a 3″ built-in counterflashing. The curb to housing connection acts as a termination for the roof material.
No. The lid and curb should NEVER have a penetration. Doing so will compromise the integrity of the VAULT® and void the warranty. In addition, the lid and the curb should never be punctured. Only use the pre-drilled holes for the fasteners.

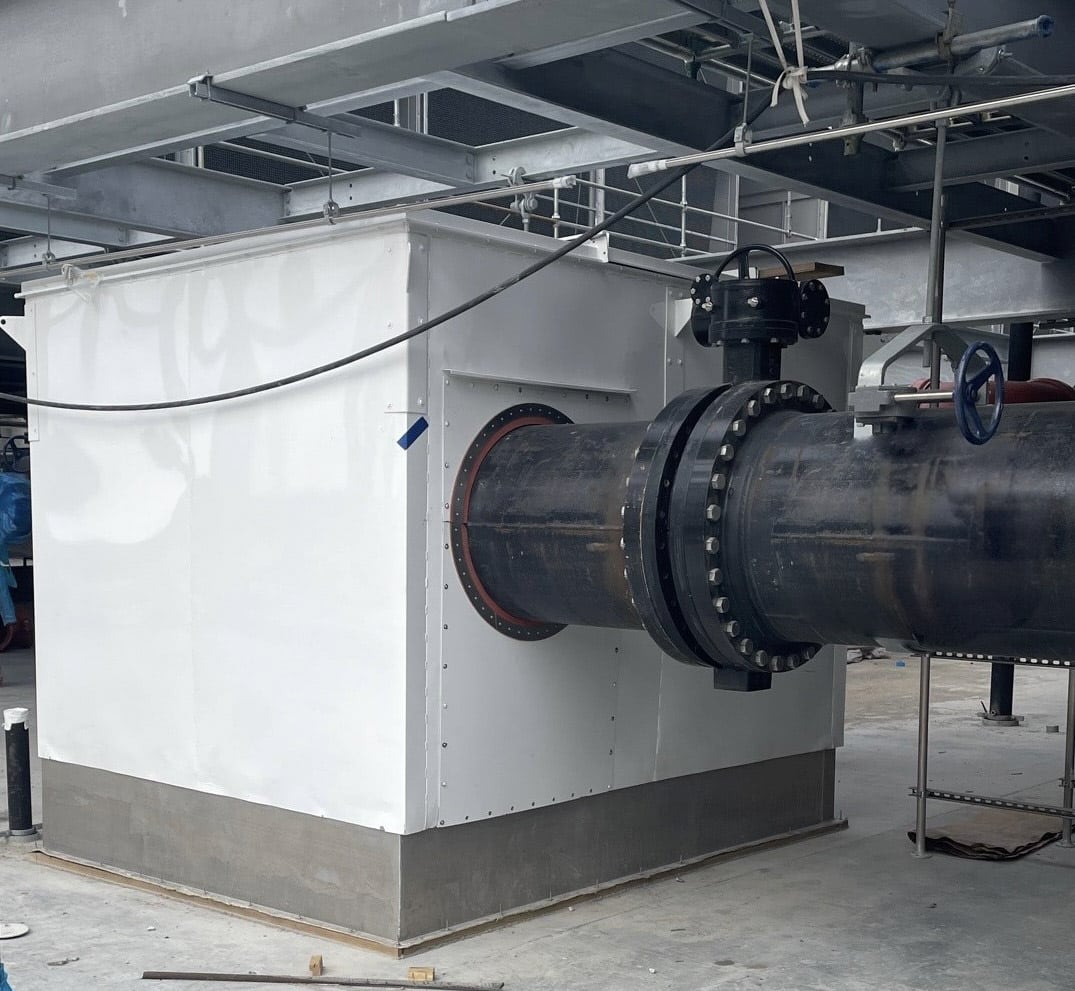

Customize Your VAULT® Project
Experience the power of our game changing custom solutions as we proactively tackle and conquer unique project challenges for specifiers, building owners and contractors.
- ANY SIZE PENETRATION
- ANY TYPE OF PENETRATION
- ANY QUANTITY
